Europak
With its ear to the ground, LACROIX City Street Lighting develops high-quality, extremely durable junction boxes and components. Thanks to a solid culture of innovation, LACROIX City Street Lighting has been designing for over 35 years, equipment keeping pace with the needs in the field.
Our connecting solutions allow you to protect people and installations and to save time in terms of installation and maintenance.
Europak
IP44-IK08 – CLASE II – PATENTED COMPONENTS

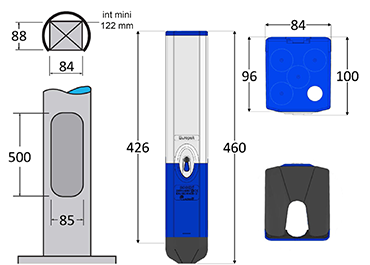

Connexion : 3 network cables 35mm² – Lampost : Ø int. 122mm

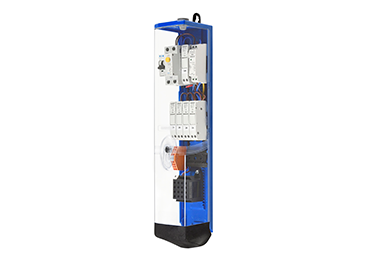

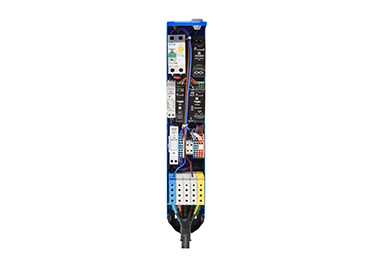

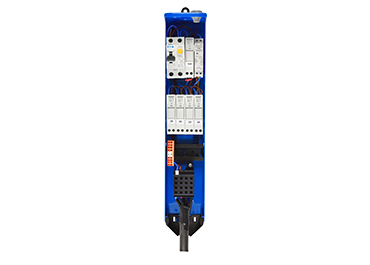

The lamppost junction box with the largest capacity (4 zones), specially designed for Smart Lighting.
Europak can connect up to 3 x 35mm² network cables and 5 lighting fixture cables (via the top).
Patented hook system for DIN rails and terminals block : a unique modular design to adapt configurations and so answering numerous implementation needs.
An exclusive interface area to facilitate the connection of Smart City devices.
Open sides and stiffened back to facilitate connection.
Low cover easily fitted for secure maintenance of the connections.
Protective flexible cone, for the frontal insertion of power cables.
Advantages
- The largest capacity on the market : 4 zones to facilitate the connection of Smart City devices.
- Simple installation and maintenance : long high transparent cover for optimal view and direct access to protections. Central locking by 1/4 turn captive screw.
- A modular and scalable junction box : up to 3 adjustable DIN rails and a removable terminal block support that can be adjusted in height without tools (patented system).
Technical specifications
Max capacity
- Up to 3 network cables 5G35mm².
- Up to 5 lighting fixture cables (via the top), 3G2.5mm² rigid.
Enveloppe
- Self-extinguishing polycarbonate.
- IP44 in accordance with IEC 60529 (open junction box: IP2X).
- IK08 in accordance with EN 62262.
- Class 2 (can also be supplied with insulated earth terminal).
- -40°C to +130°C.
Product standards
- EN 61439-2.
Installation standards
- NF C17-200 and associated guides.
Standard colour: blue
- Other colours: please consult us.
- Available in transparent version.
Mounting
- Fixing bracket 1 hook.
- Possible vertical rail mounting with M6
screws
Optional
- Terminal block: marking of the terminals to facilitate maintenance.
Delivery
- Pre-wired with high-temperature silicone coated wires and crimped lugs.
- Supplied with fuses, configuration labels and cable clamp.
